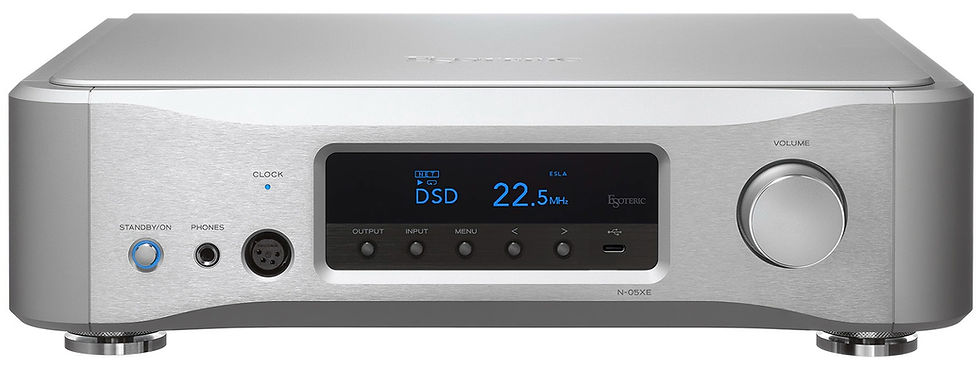

The N-05XE features the optical network-compatible G4 network engine and a
next-generation G2 ‘Master Sound Discrete DAC’. It also has a dual balanced
preamplifier derived directly from the Grandioso Series models along with a
high-quality built-in headphone amplifier. The "XE" model retains its
acclaimed functionality while meticulously refining every circuit component
through a newly optimized design.

N-05XE System Configuration
• D/A Converter: Equipped with a wide range of digital inputs
• Network Streamer: Designed for streaming and music file playback
• Dual-Mono, Dual Balanced Preamplifier
• Dual-Mono, Parallel Single-Ended Headphone Amplifier
• Fully Dual-Mono Construction: All analog and power supply circuits are
completely L/R independent
Master Sound Discrete DAC G2
• Next Generation “G2” DAC: With richer musicality, incorporating the
Grandioso N1 technologies
• Highly Advanced Multilevel ΔΣ D/A Converter: Powered by 64-bit/512Fs
ΔΣ modulator
• FPGA-Based Discrete Circuit Configuration: Without using an off-the-shelf
DAC IC
• Two Independent FPGA Digital Processing Algorithms: Optimized
separately for PCM and DSD formats• Low-Noise New Register Network: Provides cleaner imaging and lower
noise
• High Precision MELF Resistor Elements: Ensures ultra-high D to A
conversion accuracy
• Fully Dual-Mono Configuration: Left/right independent analog and power
supply circuits


“Master Sound Discrete Clock for Digital Player” : Esotericʼs proprietary
high-precision clock circuit

ESOTERIC Network Engine G4
• Next Generation Network Streaming Engine: Supports optical network
connections via SFP port
• Dedicated Large Linear Power Supply: Contributes to smooth, vinyl-like,
and richly detailed sound
• Native DSD 22.5 MHz Playback Support
• Music Server Function: Supports connection of up to two USB drives
• Wide Range of Supported File Formats: DSF, DSDIFF, FLAC, ALAC, WAV,
AIFF, MQA, MP3, AAC
• Esoteric Sound Stream App: Provides extremely comfortable operation on
smartphone/tablet
• OpenHome Compliant: Can be controlled using compatible OpenHome
applications
• Support for Multiple Streaming Services: Tidal Connect, Qobuz Connect,
Roon, Spotify Connect, QQ Music
Dual-Mono, Dual Balanced Preamplifier
• High-Fidelity Dual-Mono, Dual Balanced Circuit: Consists of 8 circuits (L/R,
hot/cold independent)
• Dedicated Attenuator Power Supply: Contributes to pure volume control
• HCLD High-Current Buffer Amplifier: Powerfully drives downstream
equipment with no sound quality difference regardless of preamp output, line
output, or headphone output
• ES-Link Analog: Esotericʼs proprietary current signal link with amplifier,
provides super authentic sound
• ES-Link Analog input ×1
Dual-Mono, Parallel Single-Ended Headphone Amplifier
• Completely New Circuit Design: Developed for even higher sound quality
• Dual-Mono Parallel Single-Ended Amplification: Provides excellent drive
capability and control
• 1,200 mW + 1,200 mW Output (32 Ω Load)• 4-Pin XLR and ¼ (6.3mm) Stereo Phone Headphone Outputs
Other Features
• Front USB Type-C Port: Functions as a DAC input for smartphones and DAPs
• ES-Link (XLR) Input: Provides digital connectivity to Esoteric SACD transport
models
• 10 MHz Clock Input: Enables connection to the G-05 external master clock
for further sound quality enhancement
• Bluetooth® Receiver: Supports various high-definition codecs; LDAC, LHDC,
Qualcomm®aptX ™ HD audio, Qualcomm®aptX ™ audio, AAC, SBC
• Fixed Line Output Mode / Signal Pass-Through Output Mode
• High-Rigidity Chassis Construction: Optimized for effective vibration
control
• Semi-Floating Top Panel: Enhances sonic openness and spatial expression
• Patented Pinpoint Isolation Feet: Deliver focused imaging and an open
soundstage
• Proudly Made in Tokyo
