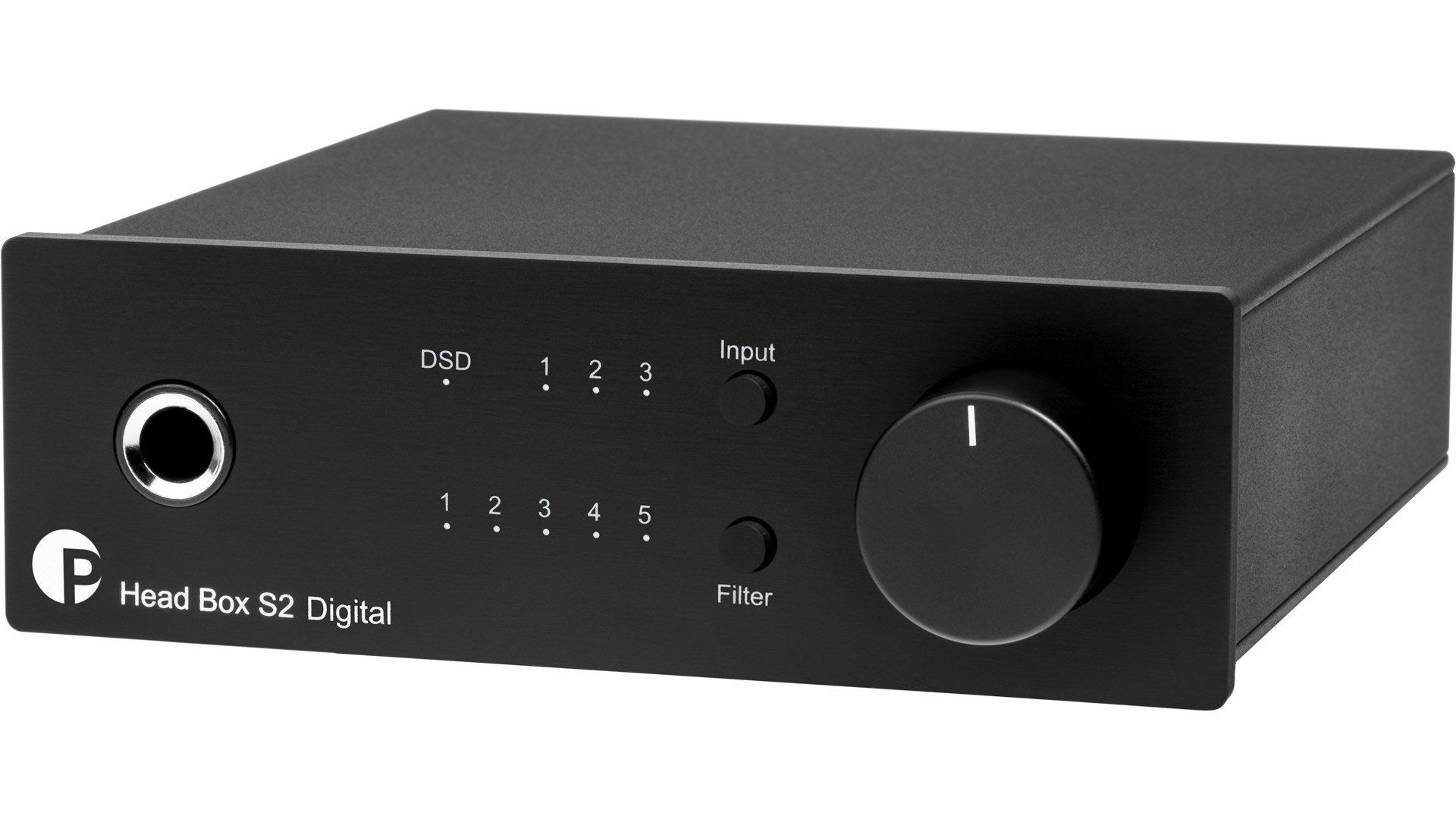

Head Box S2 Digital comes fully equipped to meet the demands of the modern audiophile. It supports playback for PCM files up to 32bit/768kHz and DSD decoding up to quad DSD (DSD256). It also includes five digital filers to adjust the sound based on your preferences. Three digital inputs (USB, coax & optical) ensure compatibility with a variety of digital sources. The coaxial S/PDIF input is optimal for use with a digital transport such as the CD Box DS2 T. All inputs offer support for high-resolution data up to 24bit/192kHz. The USB input offers high-resolution support for files up to PCM 32bit/768kHz and DSD256. Any unwanted noise from the USB path is double-filtered and thus inaudible. The front-seated 1/4″ headphone output delivers clean, precise & musical sonics and the aluminum/steel enclosure effectively isolates the circuitry from interference that could otherwise bleed into playback.

ADDITIONAL INFORMATION
Weight
0.36 kg
Dimensions
12.2 × 10.3 × 3.7 cm
Color
Black, Silver

Features
High end ESS Sabre ESS9038 DAC
Proprietary clock circuity design
Organic polymer capacitors and thin film miniMELF resistors
32bit / 768kHz decoding
DSD64, DSD128 & DSD256 (DSD over PCM)
Up to 24bit/192kHz for optical & coax inputs
5 selectable digital filter characteristics
1 proprietary optimum transient digital filter
Headphone output on the front (6.3mm)
Synchronization of all internal oscillators
Jitter as low as 100 Femtoseconds!
Gold plated four layer PCB
Full aluminum/metal sandwich casing in silver or black
Handmade in Europe
