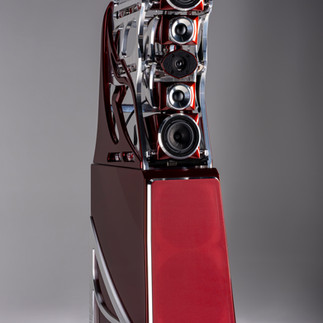

Introducing: Wilson Audio Autobiography - The Ultimate Loudspeaker

At Music Lovers Audio, we’re beyond excited about the arrival of the Wilson Audio Autobiography. This is a landmark release for the brand, bringing together decades of engineering refinement and craftsmanship in a completely new design that technologically supersedes their world-famous WAMM loudspeaker.

What stands out immediately is the level of intention behind every aspect of the design. From an entirely new driver architecture to a rethinking of enclosure materials and mechanical alignment, the Autobiography reflects a ground-up approach rather than an incremental update. Each decision serves a clear purpose: improving coherence, preserving timing accuracy, and revealing more of the nuance and scale embedded in a recording. The result is a presentation that feels expansive, controlled, and deeply engaging.

Keep following us for more updates on the Autobiography, Wilson Audio's newest reference-level masterpiece.

-----

The following is from Wilson Audio regarding the design, concept, and specifications of the new Autobiography speaker:

Autobiography: memoirs, life story, account of one's life, personal history; diary, journal.

“The Story of Wilson Audio in Form”

"The History of Wilson Audio Sculpted”

“Journaling the Journey”

“Memoirs of Memories” The Story of Wilson Audio in Form

An autobiography is a personal chronicle. It is a record of lived experience shaped by time, intention, discovery, exploration, and refinement. It is a memoir—not simply of events, but of evolution. In that spirit, the Wilson Audio Autobiography stands as a sculpted narrative of the company’s history, pursuit of musical truth, and dedication to refinement in craftsmanship. Not just a personal chronicle, but a personnel chronicle.

Autobiography is the culmination of over half a century of education and uncompromising execution by the world’s most dedicated guild of loudspeaker craftspeople. Every element, every curve, and every acoustic decision reflects a journey that began with Wilson Audio’s founder, David A. Wilson, and his earliest experiments into time alignment, resonance control, and emotional connection with music. This loudspeaker does not reference the past as nostalgia. It distills experience into clarity, preserving what matters while advancing what is possible.

This paradigm-shifting design journals the path Wilson Audio has traveled, from the earliest original WAMM and WATT experiments to presenting a forward-looking statement that could only exist today. Autobiography is not a compilation of prior solutions. It is the result of understanding why those solutions succeeded, and how they could be refined, reimagined, and elevated.

This is Wilson Audio’s story told through engineering, through waves of music. It is a memoir of memory, rendered in sound. Wilson Audio’s Autobiography is not a statement of arrival. It is a moment of pure reflection on a beautiful journey still unfolding.

Transducers – Crafted Anew

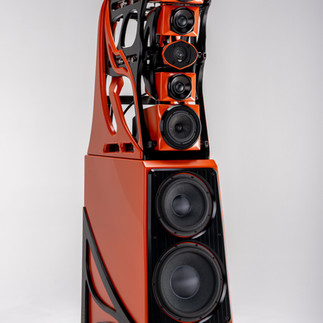

At the core of Autobiography lies a completely new driver complement. This is a five-way loudspeaker configured in an M(MTM)M array, with every transducer making its first appearance in this system. Each driver was conceived specifically for Autobiography—not developed as an isolated component, but as part of a unified acoustic architecture.

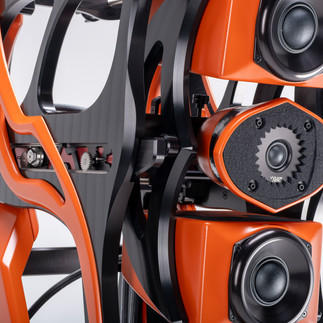

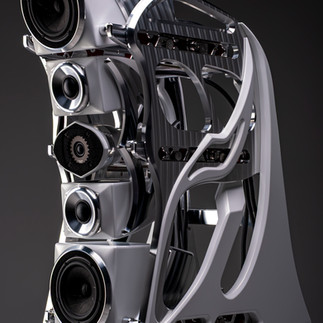

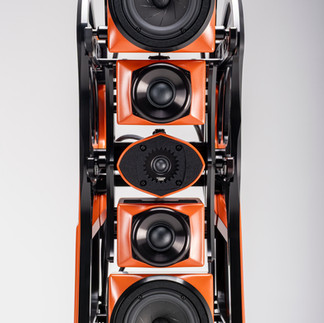

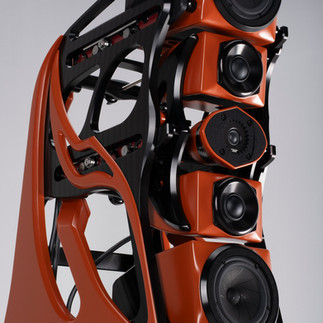

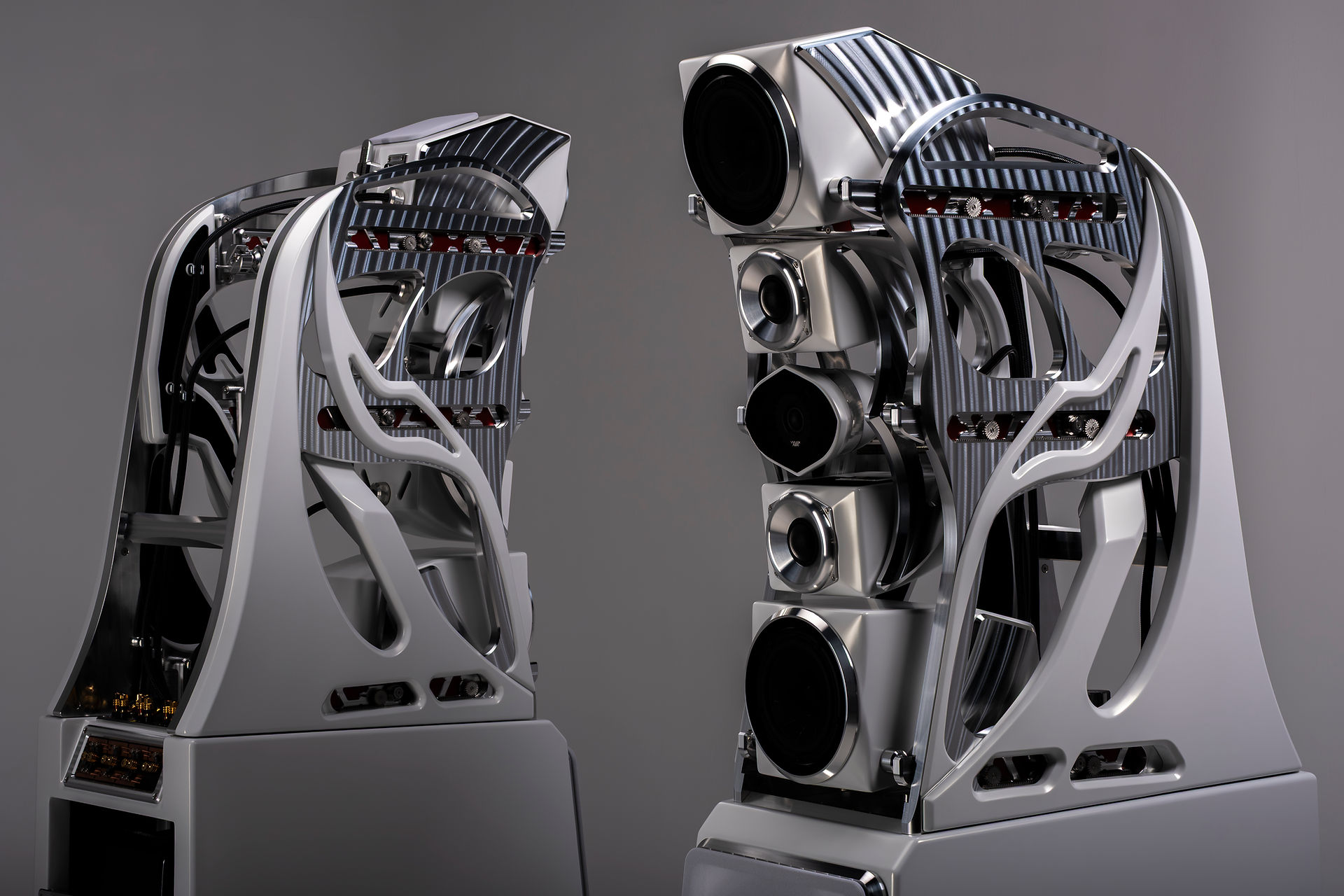

The vertical arrangement consists of a 7-inch midrange at the top and bottom of the gantry, followed by a symmetrical MTM crescent-framed array composed of dual 2-inch midrange drivers flanking the CSLS front-firing tweeter. This assembly creates a mirror structure that reinforces coherence through the critical vocal and instrumental regions. Low frequencies are handled by two dissimilar woofers—a 12-inch unit and a 15-inch unit—developed exclusively to operate together. Completing the driver lineup is a rear-firing ambient tweeter designed to enrich spatial information.

The result is a loudspeaker that preserves timing accuracy, dynamic expression, and tonal integrity across the entire audible spectrum. Each transducer contributes its strengths without imposing character, allowing the system to speak with a single, coherent voice.

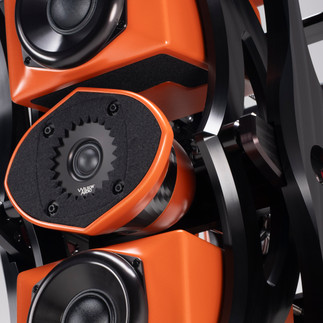

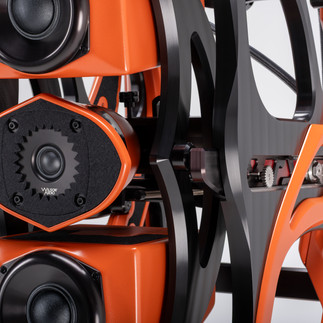

Front-Firing Tweeter / CSLS:The Convergent Synergy Laser Sintered (CSLS) front-firing tweeter (FFT) represents the latest evolution of Wilson Audio’s Convergent Synergy technology. Its redesigned rear-wave chamber improves energy dissipation, reduces internal reflections, and further lowers the noise floor. This refinement enhances clarity without introducing grit or exaggeration, allowing micro-dynamic information to emerge naturally.

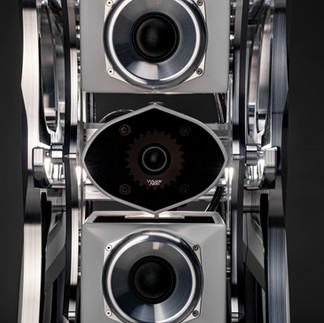

2-inch Midrange / 2” MID:Flanking the CSLS tweeter are two newly developed 2-inch midrange drivers coupled with optimized sonic faceplates. Known as the 2” MID (Midband Integration Driver), these units were created to bridge the gap between the speed of high frequencies and the lush, lifelike presentation of the larger midrange drivers. Their placement ensures symmetrical dispersion and precise time-alignment behavior through the most perceptually sensitive region of human hearing. The 2” MID dissolves the boundaries between drivers, integrating the midband with such precision and natural flow that the listener perceives only music, not mechanics.

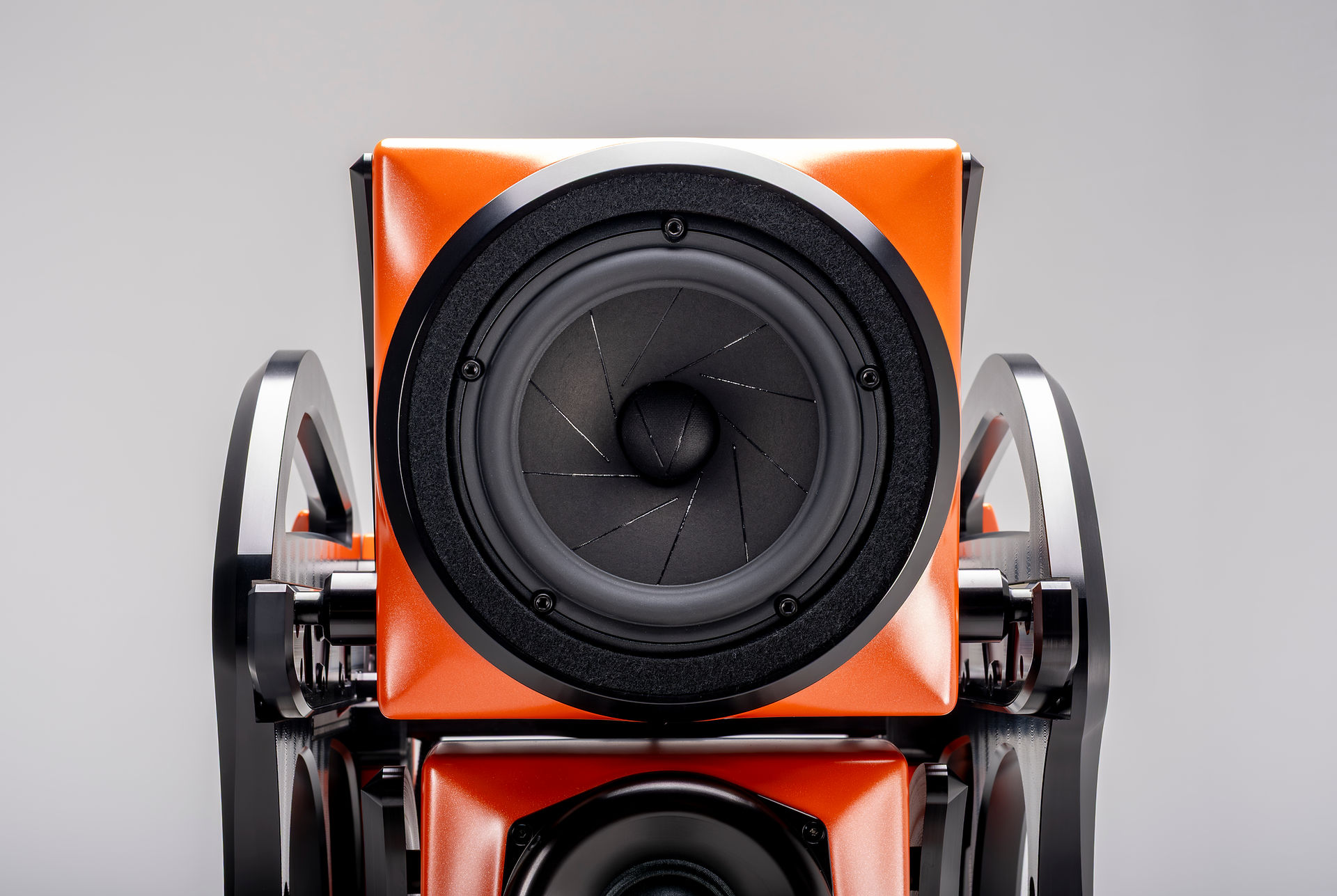

7-inch Midrange / PentaMag:Above and below the MTM assembly sit two 7-inch PentaMag midrange drivers. These are a direct evolution of the QuadraMag platform, now employing five AlNiCo (Aluminum / Nickel / Cobalt) magnets arranged to produce greater motor strength, improved flux stability, and enhanced linearity under dynamic load. This advancement yields midrange reproduction that is both powerful and nuanced, capable of conveying the full emotional weight of voices and instruments without congestion or strain.

Rear-Firing Tweeter / RFT:Autobiography incorporates an inverted dome rear-firing tweeter (RFT) designed to enhance spatial depth, ambient retrieval, and harmonic decay. This driver is constructed using aerospace-grade unidirectional spread carbon fiber, selected for its exceptional stiffness, predictability, and consistency. The diaphragm employs a variable thickness profile that minimizes inertia while maximizing structural integrity.

This RFT is a wide-dispersion design, optimized to reproduce ambient information without drawing attention to itself. Its operating range spans from 6 kHz to 22 kHz. An integrated attenuation control allows adjustment from 0 dB to -40 dB, with the maximum setting calibrated to begin at -7 dB at 10 kHz relative to the FFT at typical listening distances. This flexibility enables precise tailoring to room acoustics and listener preference, providing subtle reinforcement of spatial cues and reverberant energy.

Woofers – A Deeper Voice

The low-frequency architecture of Autobiography was driven by an inspiring objective: to deliver bass that is immediate, articulate, and authoritative while preserving tonal nuance and musical realism from the lowest registers through the midrange.

To achieve this, two entirely new woofers of differing dimensions—a 12-inch unit and a 15-inch unit—were conceived in parallel and engineered as a unified system, while the entire woofer enclosure architecture was reshaped.

Designing dissimilar drivers to function as one coherent voice presents significant challenges in timing, pressure loading, and harmonic consistency. In Autobiography, those challenges were addressed through purpose-built motor structures, suspension geometries, and a heroically constructed enclosure. Each woofer contributes distinct strengths, yet neither operates in isolation. Together, they form a seamless low-frequency foundation that responds with speed, control, and scale.

These woofers embody decades of Wilson Audio’s experience in resolving the complexities of realistic low-frequency reproduction. The result is bass that is powerful without excess and precise without sacrificing emotional impact.

Hardware – Precision in Each Element

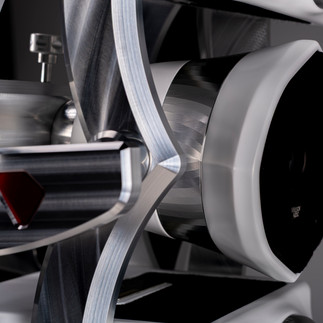

Wilson Audio designs have employed various forms of alignment hardware over the decades. Autobiography introduces bespoke hardware engineered specifically for this system—an evolution in how modules are mechanically time-aligned.

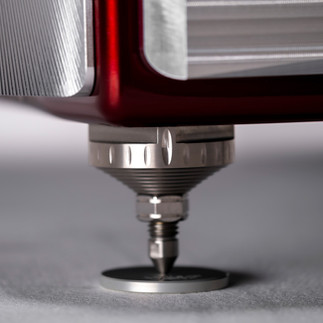

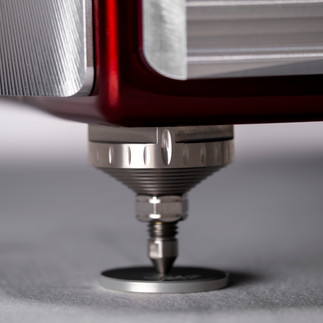

From module alignment sleds to precision slide spikes, each component functions as part of an integrated mechanical framework supporting acoustic fidelity. Accuracy, durability, and aesthetic refinement are inseparable.

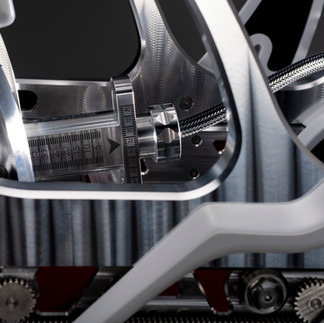

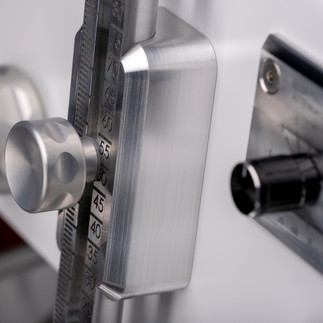

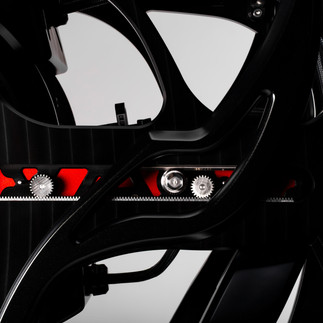

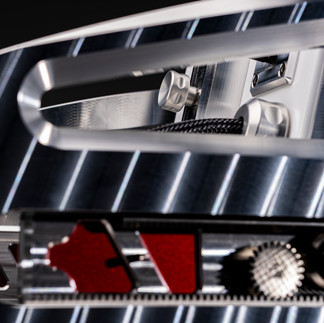

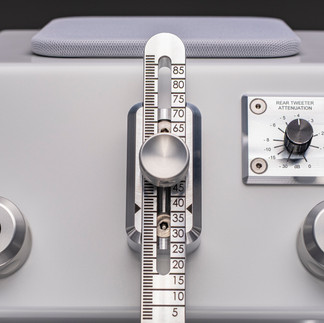

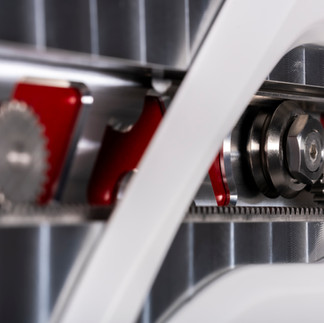

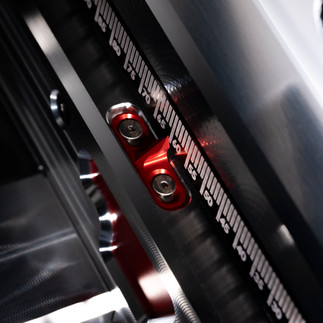

Both the upper and lower PentaMag midrange modules are independently adjustable via the alignment sled system. Indicators, gears, and reference scales are calibrated for intuitive adjustment via a rotating cam grip. The MTM crescent frame is similarly equipped, enabling time-domain precision exceeding both the WAMM Master Chronosonic and Chronosonic XVX.

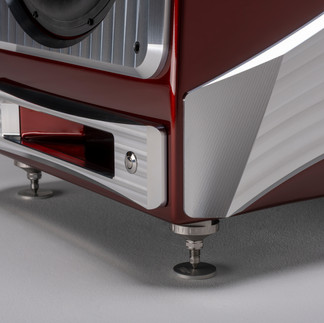

New port hardware allows rapid, tool-free configuration changes. Adjustments to the port cover and ring are made via quick-release buttons, simplifying setup while maintaining effectiveness. The cross-load flow porting system enables controlled low-frequency interaction with the room:

• Forward-firing (FF):




  10 Hz–75 Hz reduced by ~1.0–1.5 dB




  75 Hz–130 Hz increased by ~1.5–2.0 dB

• Rear-firing (RF):




  Inverse response

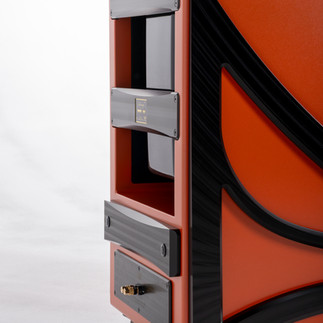

Custom Wilson Audio spades ensure optimal electrical coupling. Machined wire clasps provide organized cable management. High-quality resistors are mounted to pure copper heatsinks and are accessible without tools via the rear-mounted resistor plate.

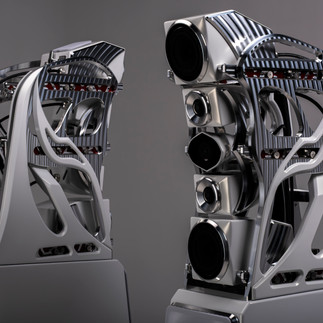

The hardware ecosystem defines Autobiography’s physical identity, featuring jewel-like elements such as the decorative mass woofer baffle, skeletonized damping decor, alignment sled systems, gear windows, locking cam levers, calibrated bubble level, and Acoustic Diodes for vibration control.

Materials – Engineered Elegance

No single material performs optimally across all applications. Autobiography reflects this through a layered architecture of purpose-engineered materials selected for specific mechanical and sonic properties.

Materials include high-density phenolic composites (H-, V-, and X-Materials), carbon fiber, aerospace-grade aluminum, stainless steel, copper, and gold. These are used functionally—to control, direct, and dissipate energy.

The woofer baffle is reinforced with aluminum damping mass while preserving full X-Material thickness behind the woofer baskets, increasing stiffness and improving low-frequency uniformity.

The crossover housing is constructed from woven carbon fiber and mounted to a V-Material vibration sink, reinforced by dual metal cross braces. V-Material is used extensively across interfaces, including spike contact points and alignment systems.

A new V-Material formulation is used at the base of the enclosure to enhance vibration control with the Acoustic Diodes. The gantry is isolated using V-Material and features a sculpted, skeletonized design blending H-Material and machined aluminum.

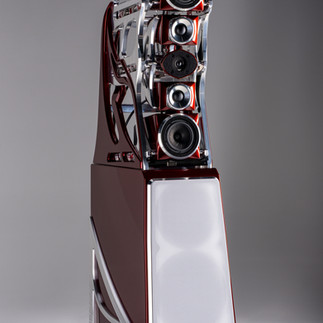

At full height, Autobiography stands approximately 83.5 inches tall, compared to the WAMM Master Chronosonic (86.5 inches) and Chronosonic XVX (76 inches).

Crossovers – Musically Minded

Five decades ago, loudspeaker designers were limited by component constraints. Wilson Audio has continually advanced beyond these limitations.

Autobiography employs handcrafted, point-to-point, in-house-built crossovers. Multi-section Reliable Capacitors (Rel-Cap) are manufactured using custom machinery and hand-finished to within ±0.2% tolerance.

The system includes copper variants of the AudioCapX-WA capacitor, enhancing high-frequency detail and spatial resolution. A newly configured woofer capacitor ensures seamless integration between low frequencies and midrange.

All components are individually selected, oriented, and hand-soldered without printed circuit boards, preserving dynamic expression and avoiding compression artifacts associated with PCB-based designs.
