11” (279 mm) Ultra-high Excursion Driver with Trilinear Suspension System and Active Ridge Technology (ART™), sealed enclosure with Cascade-Fusion™ Bracing and ADVANCED Shock-Mount™, built-in 1,100W RMS (2,200W Dynamic Peak) Class-D amplifier, App-controlled via smartphone and Anthem Room Correction (ARC®) Included.



A Master Class in Design and Engineering

The all-new XR subwoofers are a master class in design and engineering refinement that challenges what is possible from a compact, sealed subwoofer design. Paradigm's goal was to push the boundaries of performance while never losing sight of aesthetics by wrapping everything up into a suitable size that won't ever feel out of place.



Art Embracing Science

Like the award-winning Founder Series of loudspeakers, Paradigm's approach was simple. When designing XR, every part and sub-component was scrutinized and designed to be optimal for its specific purpose and for each piece to complement the others, resulting in a product that is truly greater than the sum of its parts.

Performance was paramount when developing XR. But at Paradigm, they truly believe in their mantra of "Art Embracing Science," so XR's luxurious cabinet is acoustically inert and visually stunning to look at.

These Made in Canada subwoofers truly redefine what you should expect from a subwoofer in this category: Brains, Beauty and Brawn.



A Match Made in Heaven

XR's cabinet embodies Paradigm's "Art Embracing Science" philosophy. It's the perfect complement to any system and blends perfectly with their award-winning Founder series of loudspeakers, even available in the same gorgeous Walnut, Black Walnut, Piano Black, and exclusive Midnight Cherry finishes.



Purposefully Beautiful and Intentionally Functional

The faceted design of XR's cabinet is not only purposefully beautiful but intentionally functional. The geometric profile elegantly distributes the massive load of housing the powerful woofer inside, providing greater strength and rigidity than traditional rectangular designs. The custom 2" thick MDF front baffle adds further rigidity to the cabinet and acts as the backbone necessary to withstand the brutal forces of the massive woofer and magnet within.



Cascade-Fusion Bracing

Cascade-Fusion bracing further increases cabinet rigidity for maximum acoustic precision while also breaking up standing waves internally, which provides more accuracy and greater bass clarity.



Did you know?

During early development, the XR woofers were able to split the test cabinets at the seams from their brute force! Cascade-Fusion bracing was the logical solution, adding strength and beauty to this legendary bass recipe.



Where Form & Function Are One

XR expertly blends form and function to combine every element acting as reinforced bracing to create a beautiful yet robust enclosure free of performance-robbing vibrations.



FEA Optimized & Purpose Built

Even the amplifier has been designed with form and function in mind. Its FEA-optimized and purpose-built design ensures no structural integrity is lost. In contrast, its finned design acts as an efficient heat sink to effortlessly transfer heat from the massive power amplifier providing effective cooling for years of worry-free operation and stable performance.



Best-in-Class Premium-Grade Finishes

XR cabinets are offered in a variety of beautiful premium-grade finishes: Walnut and Black Walnut have a smooth satin finish with distinctive wood grain. Paradigm's exclusive Midnight Cherry and Piano Black feature a luxurious hand-rubbed, high-gloss finish.



XR Design Philosophy

XR is not only about maximizing output but minimizing distortion too. This one-two-punch design philosophy is bolstered by the inclusion of exclusive Paradigm technologies not found elsewhere.

XR turns up the bass by turning down the noise!



Advanced Shock-Mount Technology

Paradigm’s exclusive Advanced Shock-Mount enabled outriggers are designed with multi-layered durometer rubber-metal matrices to provide industry-leading isolation whose benefits can be measured and heard in the real world.

Not only does this give a more accurate sound while elevating low-frequency performance, but it is also a neighbor-friendly technology.

By isolating the massive forces generated by the Ultra Long Throw Trilinear Suspension woofer, we prevent that energy from being transferred to your floor. This drastically reduces distracting bass-induced rattles and vibrations around the room and helps avoid noise complaints from adjoining spaces and neighbors.

*Measurement of relative energy transfer to the floor with different feet.
*Floor measurements were performed using an accelerometer.



It doesn’t get much better than this

To put it simply, XR woofers are the most powerful speaker drivers that Paradigm has ever created. With output capability so high that some of their test cabinets were literally busted open from the massive forces generated inside. While incredibly powerful and capable of extreme output, power without control is meaningless. To that end, the XR's woofer is also a super low distortion design, significantly outclassing its intended competitors in not only distortion but maximum output, especially for a subwoofer this compact and beautiful.



Dual Motor Ultra Long Throw Trilinear Suspension

Furthering the state of the art in woofer design, the XR's Ultra Long Throw Trilinear Suspension is grounded by a dual-spider centring system to ensure the massive woofer maintains a clean, linear motion while pushing the envelope of its excursion limits. XR uses split-coil construction with oppositely wound turns on each coil, effectively eliminating motor non-linearity. High-temperature wire (adhesives rated to 450° F/232°C) ensure long-term reliability and very high power handling. Ventilated Apical™ formers contribute to increased stiffness.



Did you know?

Over three years in the making, this exotic design took thousands of engineering hours to develop and refine. Paradigm's founder, Scott Bagby, oversaw this monster woofer's development to guarantee nothing was left on the table.



Maximum Performance, Minimal Footprint

It's easy to get powerful bass with a massive cabinet, but it takes a lot of science and engineering to reach this level of performance from such a practical size.

So to further improve the XR's performance-to-size ratio, Paradigm engineers used a Vertical Mounting System to fit more woofer into the same space, maximizing the performance possible while keeping the footprint of the subwoofer in check.

Combine this with Paradigm's exclusive Active Ridge Technology, which maximizes woofer travel, and you have a winning recipe for clean, articulate, and powerful bass perfect for any class of music or home theater system.

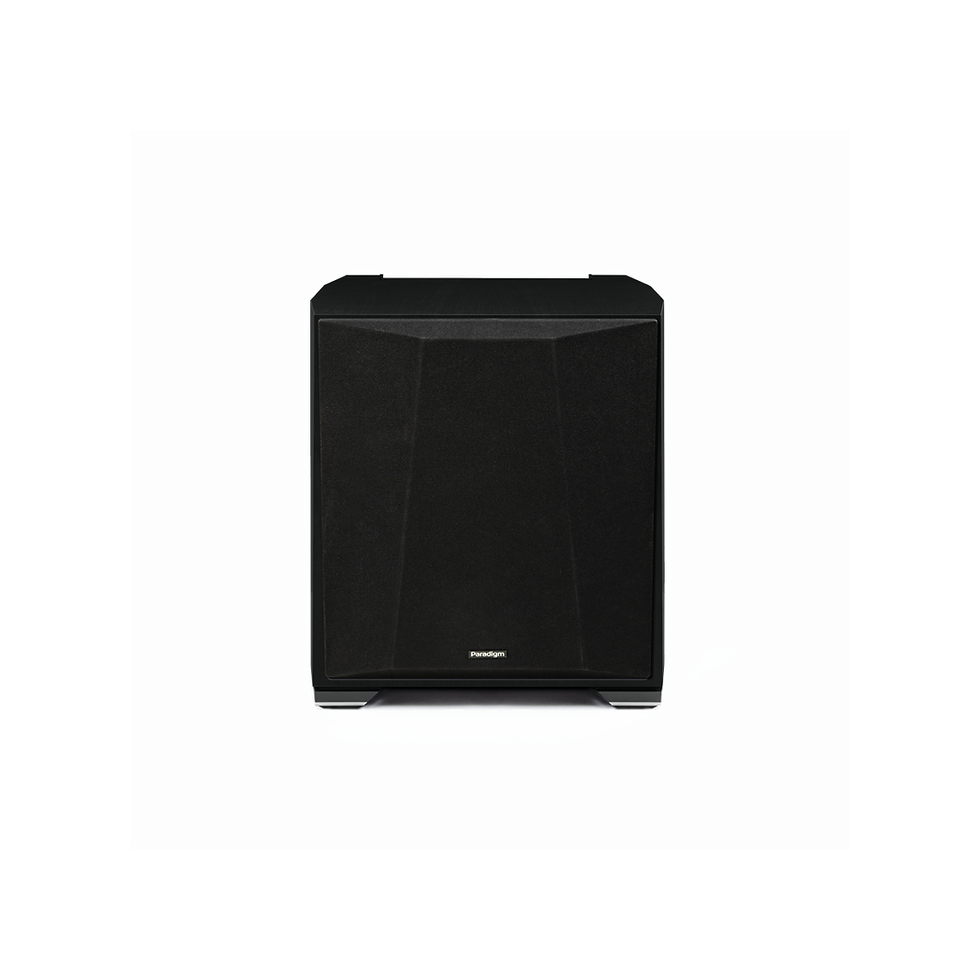

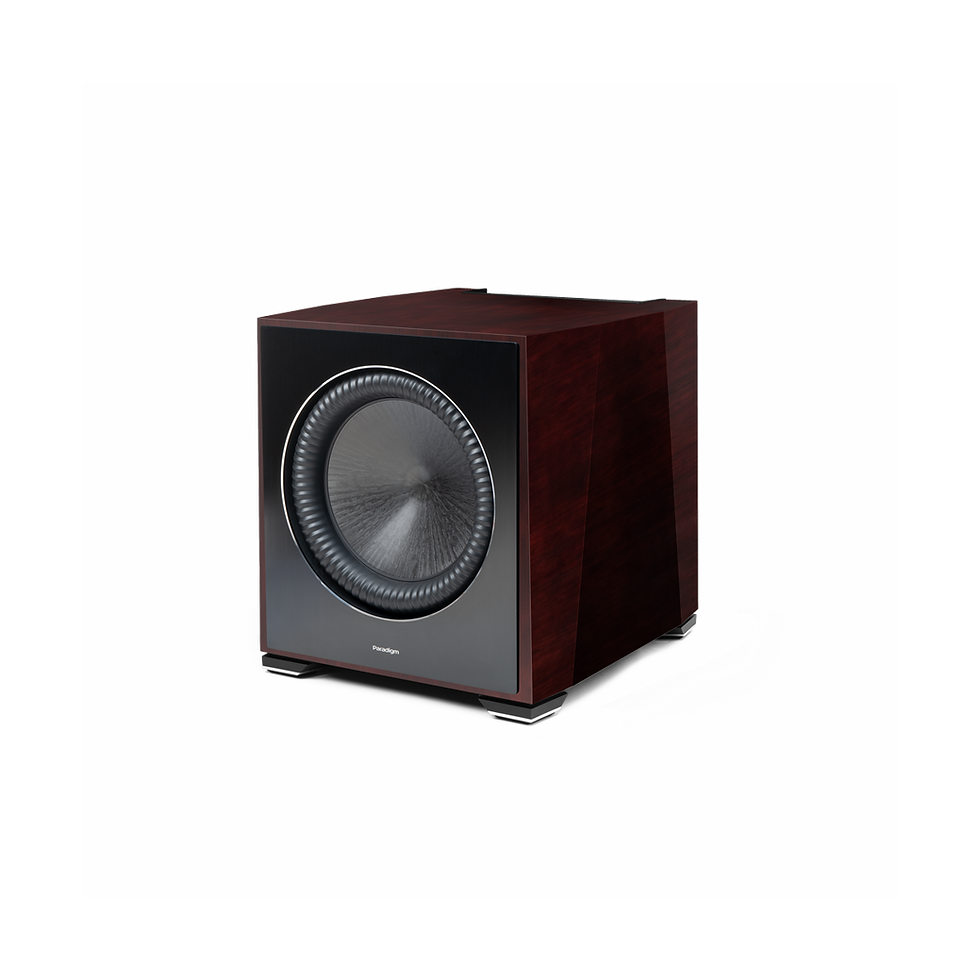

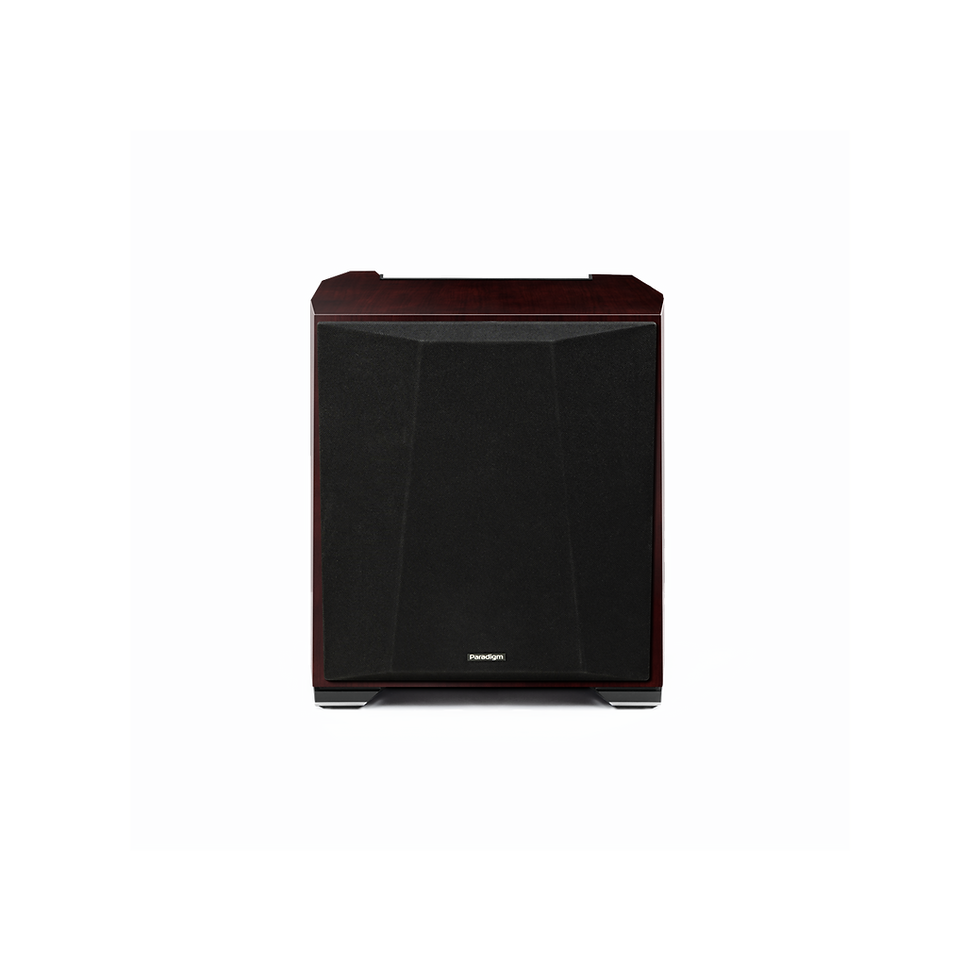

Paradigm XR 11 - 11" Powered Subwoofer

$3,999.99 Regular Price
$3,399.99Sale Price
Color
Expected to ship within 3-5 business days from product's arrival to our warehouse.
DESIGN 11” (279 mm) Ultra-high Excursion Driver with Trilinear Suspension System and Active Ridge Technology (ART™), sealed enclosure with Cascade-Fusion™ Bracing and ADVANCED Shock-Mount™, built-in 1,100W RMS (2,200W Dynamic Peak) Class-D amplifier, App-controlled via smartphone and Anthem Room Correction (ARC®) Included
AMPLIFIER FEATURES Auto-On / Off, Trigger On / Off
FREQUENCY RESPONSE ON-AXIS ±3dB from 20 Hz to 140 Hz
ROOM CORRECTION ARC Genesis (microphone included)
LOW FREQUENCY DRIVER 11” (279 mm) Ultra-High-Excursion CARBON-X Unibody Bass Driver, with Trilinear Suspension System and Active Ridge Technology (ART™), 1.5” high-temperature voice coil
EFFECTIVE PISTON AREA (SD) 66 sq in / 0.043 sq m
EFFECTIVE DISPLACEMENT 183.1 cu in/3 L
LOW FREQUENCY RESPONSE 14 Hz (DIN)
AMPLIFIER POWER 1,100W RMS (2,200W Dynamic Peak) Class-D amplifier, App-controlled via smartphone and Anthem Room Correction (ARC®) Included
UNBALANCED INPUTS Stereo or Mono (dual RCA jacks)/LFE RCA jack
BALANCED INPUTS One Balanced XLR (LFE)
SPEAKER/HIGH-LEVEL INPUTS Left and right speaker level inputs
INPUT GROUNDING Isolated
POLARITY 0 or 180 degrees
PHASE Variable 0°-180°
DIMENSIONS HXWXD 16.2” x 15.3” x 16.9” (41.2cm x 38.8cm x 42.9cm)
WEIGHT 65.1 lb / 29 kg each
FINISHES Gloss: Piano Black & Midnight Cherry Satin: Walnut & Black Walnut
