Features

  • One-touch CD Ripping with metadata and cover art retrieval. Industrial-grade, tray loading TEAC CD-ROM drive.
  • Choice of FLAC, WAV and AIFF codecs. Unique user-defined target folder depository feature.

  • Acronova Nimbie AutoLoader USB support for unattended ripping of up to 100 CDs (Nimbie is a third party product, purchased separately).

  • Easy-to-use metadata editing application for easily correcting metadata or modifying to suit your own sorting requirements

  • Support for using ACS10 as central library storage in addition to, or instead of, another Aurender music server’s internal storage.

  • ACS10’s SmartMerge will identify a network attached W20/N10/A10/N100H/N100C or X100L and allow user to see content from both libraries combined into one. (Note: SmartMerge can only be used 1+1, one ACS10 and one Aurender music server). Additionally, the Copy, Move, Delete and Duplicate Checker utility allows unprecedented control of your digital music library’s organization.

  • File storage is on dual 3.5” HDDs. Available factory fitted in a RAID 1 (Mirroring) configuration. Two models are available 8TB x 2 or 12TB x 2. User can change the RAID 1 factory setting making the ACS10 capable of total storage capacity of 16TB or 24TB.



Aurender Conductor App Packed with Convenient Features for Full-Function Control

The Aurender Conductor App turns the iPad into a versatile user interface for Aurender music servers. All settings and functions of the Aurender server can be easily accessed through the Settings menu, and the app comes with extensive features to make browsing and playing high resolution music collections a breeze.



ACS Manager Companion App

ACS10 is so packed with features, we had to give it its very own app! The ACS Manager companion app is used to configure all system settings including CD ripping preferences, Smart Copy, Move, Delete, Duplicate Checker, Smart Tag Editor, and more.



State-of-the-Art Automatic CD Ripping

Aurender’s CD ripping software, which is custom engineered to work with the high-quality TEAC CD-ROM drive, yields shockingly good CD rips! Sophisticated error detection and correction ensures accurate rips for great sounding results.



Dedicated USB Audio Output Port

High-performance USB Audio Class 2.0 output allows ACS10 to function as a music server / streamer when connected to an external DAC. ACS10’s USB audio output quality is equivalent to N10’s USB audio output.



Massive HDD Storage Capacity for the Largest Music Libraries

ACS10 is available in two different dual hard drive configurations to provide enough storage for even the largest digital music libraries. 16TB or 24TB versions are factory configured in RAID 1 mirroring meaning your actual music library storage capacity is half that, with the other half a mirrored image on a second drive. ACS10 can be user reconfigured to disregard mirroring and provide 16TB or 24TB total storage respective of model.



Linear Power Supply with Integrated UPS

Full-linear power supply plus “super capacitor” based uninterruptible power supply (UPS) for stabilizing the ACS10 under an abrupt power outage condition.



Support for High-Resolution Formats

All major codecs supported. PCM up to 786kHz/32-bit. DSD up to 256 DoP. Native DSD up to 512.



MQA Core Decoder (optional in-app purchase)

Aurender’s optional MQA Core Decoder upgrade enables “first-level” MQA unfolding to play MQA files at up to 48 or 96 kHz.

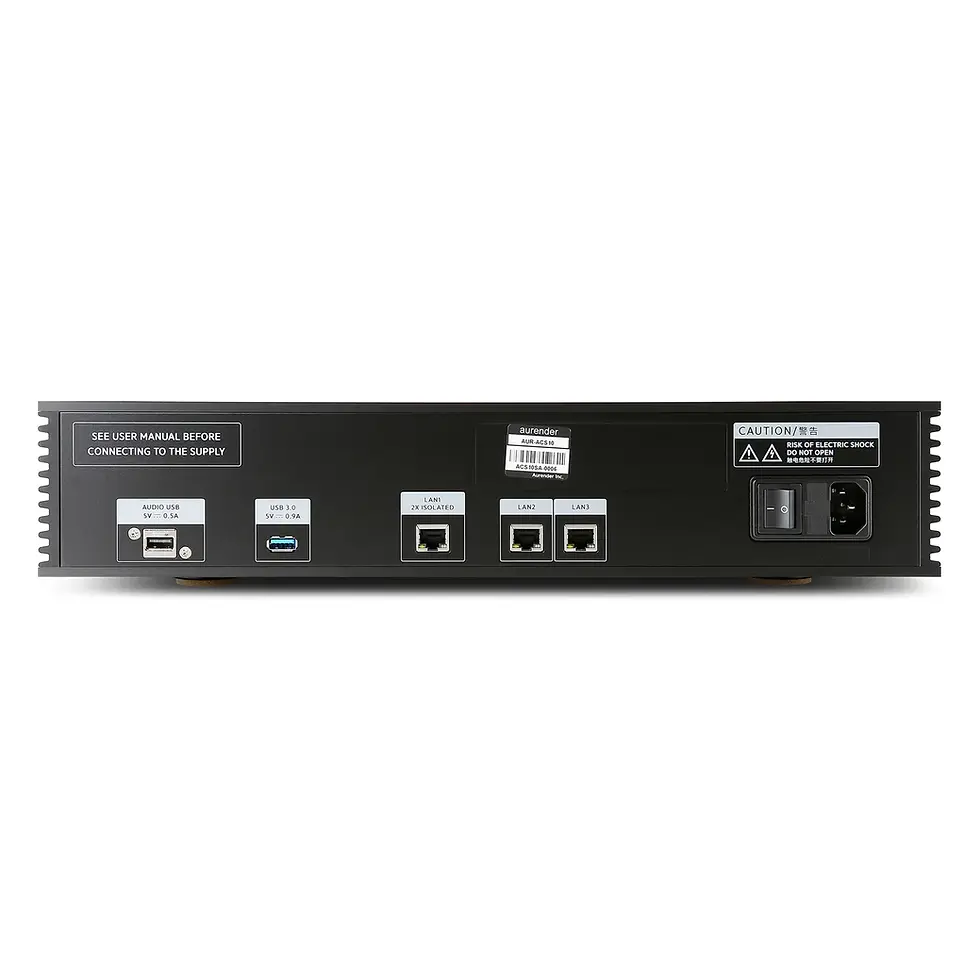

2X Isolated LAN Port

ACS10 features 3 LAN ports, so it can be used as an Ethernet switch. One of three LAN Ports is 2X isolated – use this 2X isolated LAN port to connect to another Aurender server/player to isolate the server/player from any noise introduced by the LAN connection. If using ACS10 as a stand alone server, use the 2X isolated LAN to connect directly to the router.



USB Connectivity

ACS10 features a USB 3.0 port for super fast copying from a USB hard drive. It also features a front-mounted USB 2.0 port (for connecting a Acronova Nimbie AutoLoader) and a filtered and isolated USB Audio 2.0 port dedicated for pristine audio.

Aurender ACS10 Music Server/Streamer & CD Ripper

PriceFrom $6,500.00
Color
Expected to ship within 3-5 business days from product's arrival to our warehouse.

Physical Specifications

Dimensions

16.9"W x 14"D x 3.8"H (3.3" w/o Feet)

Weight

27 lb

Material

Machined Aluminum Chassis

Front Panel Display

4.0" IPC LCD

Technical Specifications

Power Supply

Full Linear

CPU

Intel Low Power Quad Core

RAM

8GB/16GB for 24 and 28 TB models

Library Storage Capacity

28TB

SSD for System & Cache

240GB NVME/480GB NVME for 24 & 28 TB Models

Data USB Ports

1X USB 3.0 (Front), 1X USB 3.0 (Rear)

Software Suite

Aurender Conductor, ACS Manager

Ethernet Port

1 Double-Isolated + 2 Standard Gigabit LAN

Uninterruptible Power Supply (UPS)

Yes (Super Capacitors)

Power Consumption

Play (16.5W), Peak (23.5W), Standby (6.5W)

CD Ripping Capability

Yes, Drawer-Loading Optical Drive, Compatible with Nimbie Autoloader

Audio Specifications

Analog Outputs

N/A

DAC Chipset

N/A

Audio Word Clock

TCXO

Analog Outputs Supported Format

N/A

Digital Outputs

USB Audio (Dedicated)

USB Output Supported Format

Up To 32-bit / 384kHz, DSD128 (DoP), DSD512 (Native)

SPDIF & AES/EBU Output Supported Format

N/A

Digital Inputs

N/A

Headphone Section

N/A

Master Clock Input

N/A

MQA Support

MQA Core-Decoder Upgrade Available

Compatible Formats

DSD (DSF, DFF), WAV, FLAC, AIFF, ALAC, M4A, APE and others

DSD-to-PCM Conversion

N/A
