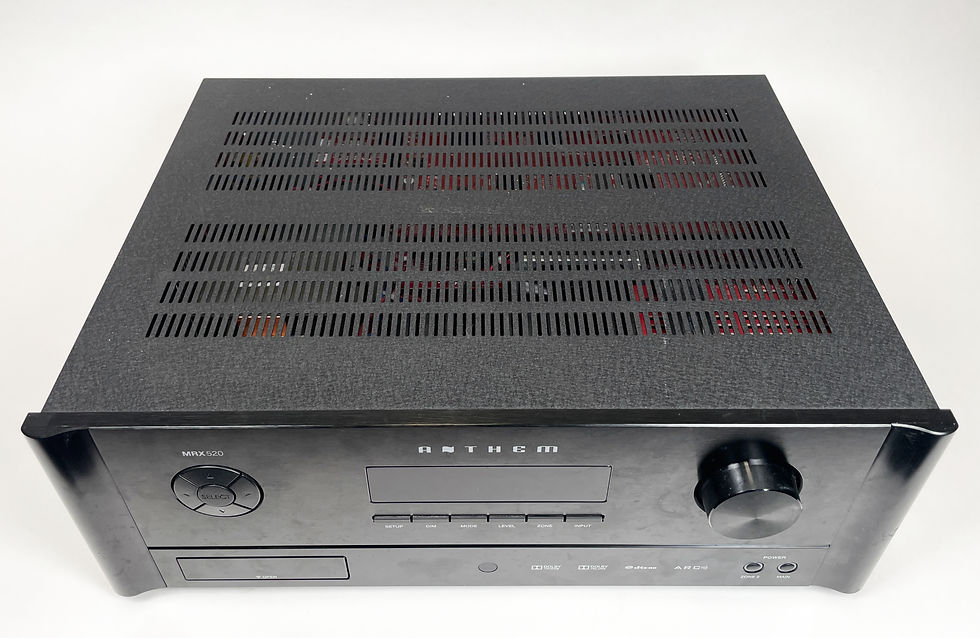

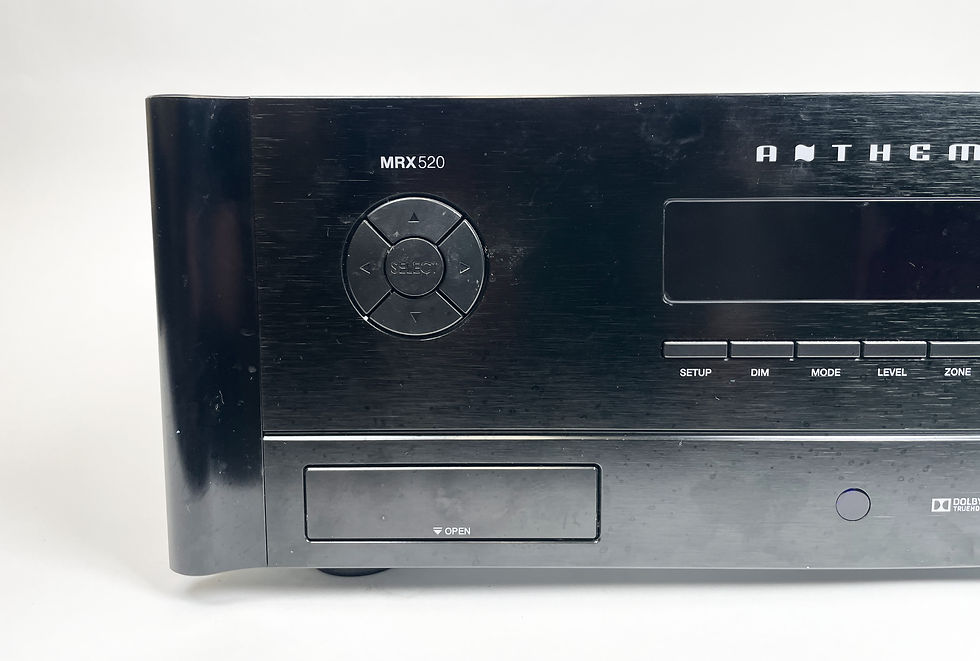

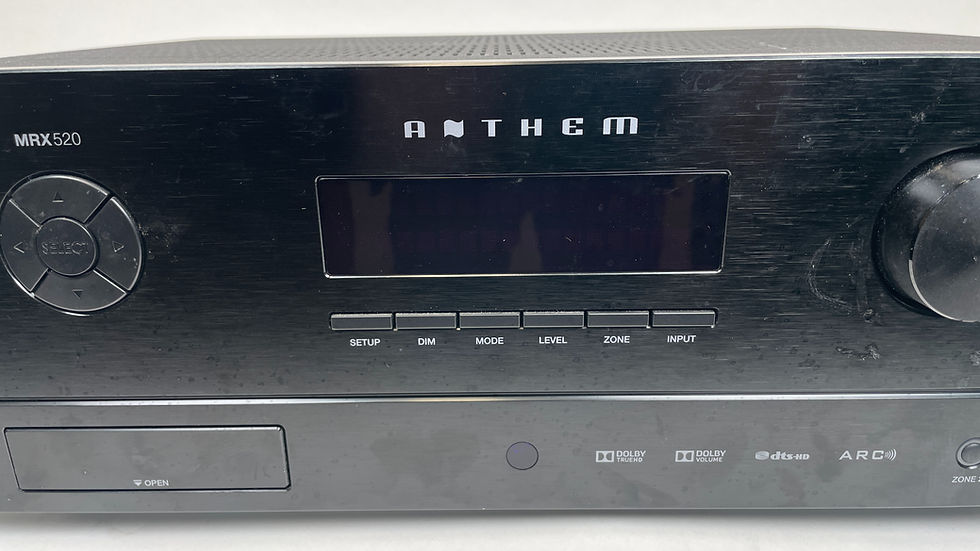

Used Anthem MRX 520 A/V Receiver for sale
-ARC kit included

-----
Separates-Quality Performance in a Gutsy, Feature-Rich AV Receiver.

Experience the breathtaking power and multi-channel flexibility of Anthem’s NEW Third Generation MRX Series of AV Receivers.

Anthem’s award-winning Third Generation MRX Series of high-end multi-channel A/V receivers are known the world over for their excellent sound quality, efficient power handling, and the ease with which they integrate into an entertainment system. The MRX Series is packed with exclusive audio innovations like Anthem Room Correction (ARC) Technology and Advanced Load Monitoring (ALM) Technology, 4K Pass-Through with fast HDMI switching and more.

MRX 520 Features & Functions
5.2 Pre-Amplifier & 5 Amplifier Channels
ARC™ Anthem Room Correction
4 Speaker Profile Memories
Two Sub Out Jacks (parallel)
Premium 32-bit / 768 kHz Differential-Output D/A Converters
HDMI & Video
HDMI 2.0a
HDCP 2.2
4:4:4 Subsampling at 4K60 (18.2 Gbps)
High Dynamic Range (HDR)
Dolby Vision™ Compatible
Hybrid Log Gamma (HLG)
BT.2020 Color Gamut
On-Screen Display with 4K 50/60
4K 50/60 Switching

Why choose an A/V receiver?
Because it’s everything you need to drive a multi-channel home theater or music system in one convenient component. It’s a space-saving, cost-effective alternative to building a system from “separates” (i.e. a preamplifier plus a processor plus a separate external power amplifier). The MRX Gen 3 Family offers three feature-rich A/V receiver models to choose from:

Additional Features & Functions
Advanced Load Monitoring (ALM)
FM Tuner
Low Standby Mode power consumption
Remote control app for iOS (Apple) and Android (coming soon!)
Dolby TrueHD
DTS-HD Master Audio
AnthemLogic – (5.2 channels with MRX 520)
Dolby Surround
Dolby Pro Logic II on MRX 520
DTS Neo:6 – Cinema, Music
All-Channels – All-Speaker Stereo
7 HDMI inputs (7 rear inputs on MRX 520)
Digital Audio Inputs: 2 Coaxial + 3 Optical
5 Stereo Analog RCA Inputs
HDMI On-Screen Display – setup, video adjustments, status, song/artist info from radio stations
MHL Supported Inputs
xvYCC, Adobe RGB, Adobe YCC601, sYCC601, Deep color
2 Parallel Outputs
Consumer Electronic Control (CEC)
Audio Return Channel
Standby Pass-through
IP Control
RS-232 Control
IR Input (Configurable)
12V Trigger Output
Control System Drivers
Backlit Remote Control
Sidemount Rack Kit (sold separately)


Design Details
Supports the latest connection options
Powerful internal components
Brushed anodized aluminum aesthetic


New Color Coded Labeling
To ensure correct speaker hookups the first time, the MRX Gen 3 Series includes color coded loudspeaker terminals and new color coded labeling above speaker specific terminal pairs.


PREAMPLIFIER
Maximum Output (<0.1% THD)
4.2 Vrms, subwoofer channel 5.2 Vrms
Frequency Response (2 Vrms output)
10 Hz — 31 kHz (+0, -0.25 dB)
Frequency Response, Analog-Direct (2 Vrms output)
10 Hz — 48 kHz (+0, -0.25 dB)
THD+N (2 Vrms output)
-95 dB
S/N Ratio (2 Vrms output, IEC-A filter)
110 dB
PREAMPLIFIER + AMPLIFIER (1 W output)


MRX 520
-88 dB
SPEAKER IMPEDANCE
Compatible with 4 Ohms or higher impedance.
MAXIMUM CONTINUOUS OUTPUT (1% THD)



MRX 520
Channels 1-5, Two Driven into 8 Ohms


100 W
Channels 1-5, Two Driven into 6 Ohms


130 W
Remaining Channels, Two Driven into 8 Ohms


n/a
Remaining Channels, Two Driven into 6 Ohms


n/a
POWER CONSUMPTION



MRX 520
Typical Load


365 W
Standby


0.3 W
Standby IP Control Enabled


2.4 W
Standby HDMI Bypass Enabled


5.8 W
DIMENSIONS
Height
6-1/2" (16.5 cm)
Height with Rackmount Kit
4U
Width
17-1/4" (43.9 cm)
Depth (not including power cord)
14-3/4" (37.5 cm)
WEIGHT


MRX 520
28.2 lb (12.8 kg)
POWER REQUIREMENT
120 V version:
In countries where the line voltage is 120 V, this product operates from a single phase AC power source that supplies between 108 V and 132 V at a frequency of 60 Hz.
