The Delta D6 power distributor provides compelling proof of Shunyata Research’s commitment to delivering state-of-the-art performance at an affordable price. The Delta D6 deservedly takes it place in our Performance Line of power distributors.



For the first time Shunyata Research has incorporated its finest, most exclusive technologies into a package priced so affordably that it redefines value well beyond its price.



The Delta D6’s unheard of combination of measurable noise reduction, patented science, exclusive parts and limited life-time warranty will be impossible to find outside of Shunyata Research’s meticulously hand-crafted line of reference power distributors.



TECHNOLOGY
NIC™ TECHNOLOGY
The NIC™ (Noise Isolation Chamber) is a patented technology that reduces high frequency power line noise.

NICs™ use a non-reactive ferroelectric substance that actually absorbs high frequency noise.  This reduces noise without any of the negatives associated with power filter coils, capacitors and transformers.

— Patent Number: US 8,658,892 —


CCI™ NOISE REDUCTION
Traditional power conditioners are designed to block incoming noise from outside the home, but do not address the noise that is generated by the electronic components themselves. In fact, most conditioners reflect noise back into other components connected to the power conditioner. CCI™ (Component-to-Component Isolation) is one of the most significant but often overlooked aspects to power system performance. The CCI™ filter consists of a proprietary multi-stage filter that reduces electrical noise and interference generated by a component’s power supply.


GP-NR Noise Reduction
Significant amounts of noise exist on the ground plane of power lines. The ground wires can act as antennae, picking up electrical noise that can degrade the performance or operation of the electronic components. Ground Plane Noise Reduction (GP-NR™) is a proprietary technology developed by Shunyata Research to significantly reduce ground-plane noise; improving low-level resolution and clarity. The system includes one to four terminals, depending on the model, to connect as many as 12 audio components. We offer several models of CGC chassis grounding cables each made to your custom length and termination requirements.


CABLE CRADLE
Shunyata Research introduces a unique solution for the problem of heavy high-end power cables. The Cable Cradle surrounds and supports the weight of the power cable, preventing it from pulling away from the outlet. This system is designed to ensure reliable and secure electrical connections.


SR-Z1 Outlets
SR-Z1 Outlets are built by Hubbell to Shunyata Research's exacting specifications. The SR-Z1 starts with an oversized protective housing that allows for exceptional internal cooling capacity. The extra cooling reduces heat buildup within the electrical contacts which reduces heat induced thermal noise. The electrical contacts are made from a high purity brass-copper alloy that is superior to the bronze used in common outlets. The neutral contacts have a triple-wipe design that contacts the AC plug at three different locations which decreases electrical impedance at the contact junction.



All SR-Z1 outlets undergo advanced cryogenic treatment using our on-site Cryogenics International computer controlled facility.


ArNi® Conductors
Shunyata Research’s  ArNi® conductors are designed to be the finest quality wire available for power and audio purposes. They start life using the highest purity copper available – OFE C10100 (or Ohno single crystal). Then they are formed into “virtual hollow tubes” that we call VTX™.  The core of the conductor is completely hollow forcing the current to only travel through the periphery of the conductor, therby eliminating skin effects and random eddy currents.



And finally, every ArNi® wire undergoes our proprietary KPIP™ process.


Electromagnetic Breaker
Over-current protection is a requirement for today’s high current audio power distributors. The vast majority of manufacturers use an inexpensive thermal fuse or breaker. Both are specifically designed to heat up as the current level rises. This causes voltage drops, increased contact impedance, thermal noise, excessive heat generation and current limiting effects. There is a better solution — the hydraulic electromagnetic breaker that utilizes low-impedance relays and a sensing coil that reads the current level without heating up or limiting current. They can operate right up the to the maximum current level without heating up or limiting instantaneous current. They are rarely used in competitive products since they cost 10-20 times that of a common fuse or thermal breaker.



Vibration Isolation
After years of research into the negative effects of vibration, Shunyata Research developed its own ‌vibration isolation using sub-miniature accelerometers that accurately measures the effects of floor and airborne sound waves. We use it in the development of vibration absorbing materials such as energy absorbing footers, AC outlet gaskets and chassis dampeners that reduce resonant vibration. Recognizing that vibration control is important to overall performance, our chassis are made with optimally dampened steel and aluminum, rather than plastic or thin-wall sheet metals.


KPIP™ PROCESSING
Shunyata Research’s proprietary Kinetic Phase Inversion Process includes four days of continuous KPIP™ processing to dramatically reduce burn-in time and significantly improve sonic performance, delivering a relaxed and life-like presentation.


Sonic Welding
Simple crimping, soldering, brazing and screws are all inferior methods of joining two wires or terminals together. Sonic welding uses high-energy sonic waves to literally join two metals together at a molecular level and cold-welding uses high-energy pneumatic pressure to bond metals. Shunyata Research uses both methods to secure connections that do not degrade over time.

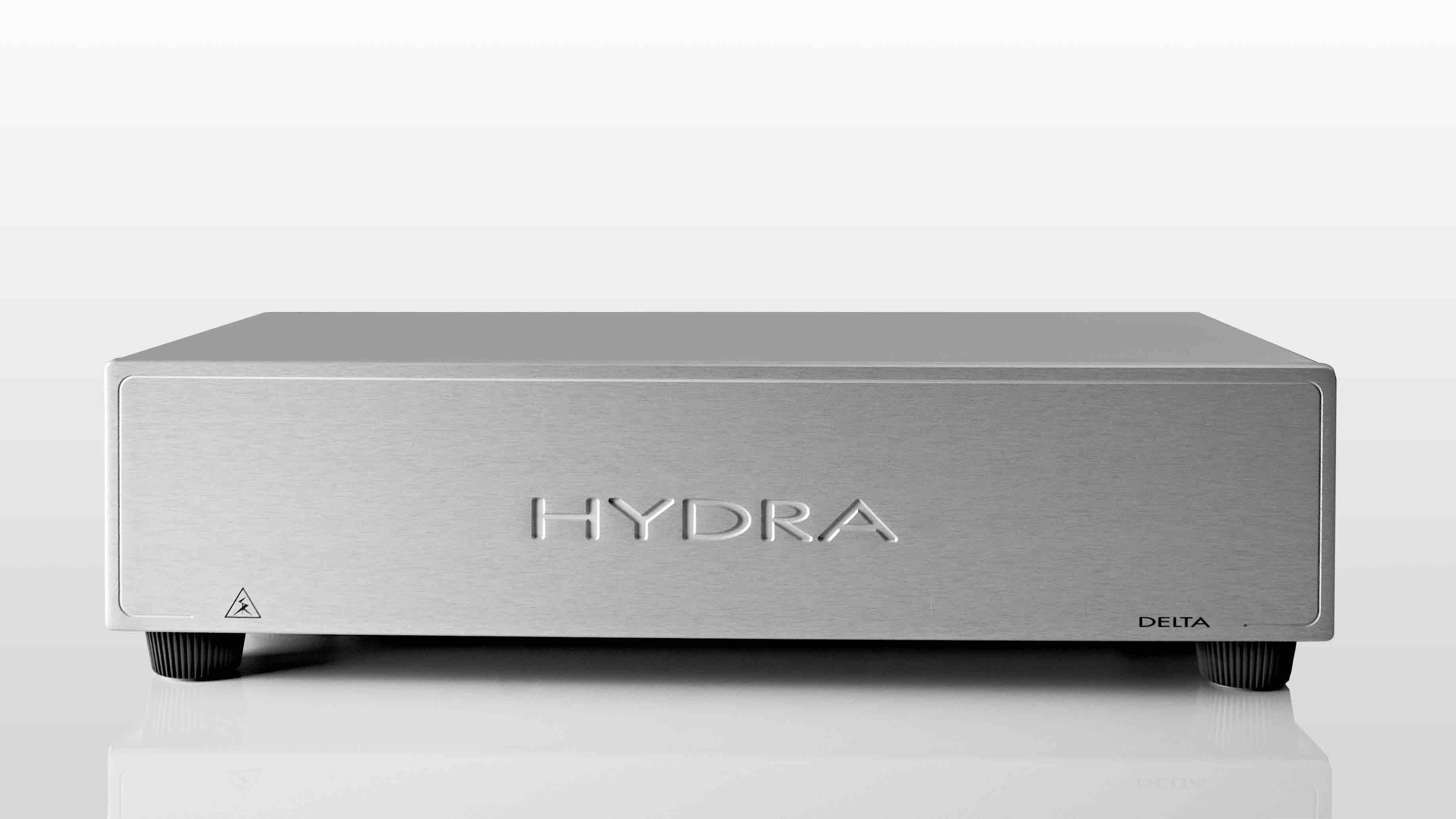

Shunyata Research Hydra Delta D6 Power Conditioner

$3,500.00Price
In-Store Only/Call to Purchase

Maximum Voltage:
90-125 VAC r.m.s. unregulated (US)
220-240 VAC r.m.s. unregulated (EU, AS, AU)

Input Current Ratings:
Maximum Continuous Current: 20A (US, AS)
Maximum Continuous Current: 16A (EU, AU)

Output Current Ratings:
Max Current/Outlet: 20A (US, AS)
Max Current/Socket: 16A (EU, AU)

Transient Suppression:
Maximum Transient Protection: 40,000 A @ 8/50 μs

Over-Current Protection:
Hydraulic Electromagnetic Breaker

Wiring System:
8 gauge ArNi® VTX™ Buss System
10 gauge ArNi® VTX™ Wiring

Ratings: 600 V 105° C

Noise Suppression:
Input to Output (100 kHz – 30 MHz): > 40 dB reduction
Zone to Zone (100 kHz – 30 MHz): > 50 dB reduction

Outlets & Connectors:
Zones of Isolation: 6 Zones
Inlet: IEC C19R

US Outlets: 6 NEMA5-20R

Vibration Control:
Vibration dampening panels (internal)
AC outlet dampening gaskets

Construction:
Aluminum and steel chassis
Anodized, aluminum faceplate

GPNR:
Length: 127 mm
Diameter: 38 mm

Dimensions:
Width: 17.0 inches (20.32 cm)
Depth: 9 inches (22.9 cm)
Height: 4.6 inches (11.7 cm)
Weight: 9.5 lbs (4.3 kg)
