The Venom Series V16 was designed using Shunyata Research’s latest advances in dynamic transient current delivery, CCI noise reduction and vibration management. It includes many of the features of our more expensive, award winning power conditioners and yet it is very attractively priced.



The Venom Series V16’s  proprietary noise reduction technology and exceptional 16 outlet capacity make it an ideal choice for home theater or complex music systems. The Venom V16’s technology and exceptional build quality provides a level of performance that is frankly unavailable from products priced two to three times higher.



There is no better example of Shunyata Research’s meteoric achievements in performance and value than that provided by the Venom Series V16 power distributor.



APPLICATIONS

— Perfect for home theater or complex audio-video systems —



TECHNOLOGY

DUAL ISOLATION ZONES

The Venom V16 is rated for a full 20-amps of continuous current allowing it to handle very demanding home theater systems, including multiple high power amplifiers. It features two independent noise reduction isolation zones, each with an eight outlet array. This allows for partitioning between source or application use. For example, use Zone A for digital and Zone B for analog in a home audio system or Zone A for visual and Zone B for audio equipment in a home theater system. This versatility offers unprecedented control in noise reduction capabilities at an astonishing value.



CCI™ NOISE REDUCTION

Traditional power conditioners are designed to block incoming noise from outside the home, but do not address the noise that is generated by the electronic components themselves. In fact, most conditioners reflect noise back into other components connected to the power conditioner. CCI™ (Component-to-Component Isolation) is one of the most significant but often overlooked aspects to power system performance. The CCI™ filter consists of a proprietary multi-stage filter that reduces electrical noise and interference generated by a component’s power supply.



ArNi® Conductors

Shunyata Research’s  ArNi® conductors are designed to be the finest quality wire available for power and audio purposes. They start life using the highest purity copper available – OFE C10100 (or Ohno single crystal). Then they are formed into “virtual hollow tubes” that we call VTX™.  The core of the conductor is completely hollow forcing the current to only travel through the periphery of the conductor, therby eliminating skin effects and random eddy currents.



And finally, every ArNi® wire undergoes our proprietary KPIP™ process.

Electromagnetic Breaker

Over-current protection is a requirement for today’s high current audio power distributors. The vast majority of manufacturers use an inexpensive thermal fuse or breaker. Both are specifically designed to heat up as the current level rises. This causes voltage drops, increased contact impedance, thermal noise, excessive heat generation and current limiting effects. There is a better solution — the hydraulic electromagnetic breaker that utilizes low-impedance relays and a sensing coil that reads the current level without heating up or limiting current. They can operate right up the to the maximum current level without heating up or limiting instantaneous current. They are rarely used in competitive products since they cost 10-20 times that of a common fuse or thermal breaker.



After years of research into the negative effects of vibration, Shunyata Research developed its own ‌vibration isolation using sub-miniature accelerometers that accurately measures the effects of floor and airborne sound waves. We use it in the development of vibration absorbing materials such as energy absorbing footers, AC outlet gaskets and chassis dampeners that reduce resonant vibration. Recognizing that vibration control is important to overall performance, our chassis are made with optimally dampened steel and aluminum, rather than plastic or thin-wall sheet metals.



KPIP™ PROCESSING

Shunyata Research’s proprietary Kinetic Phase Inversion Process includes four days of continuous KPIP™ processing to dramatically reduce burn-in time and significantly improve sonic performance, delivering a relaxed and life-like presentation.



Sonic Welding

Simple crimping, soldering, brazing and screws are all inferior methods of joining two wires or terminals together. Sonic welding uses high-energy sonic waves to literally join two metals together at a molecular level and cold-welding uses high-energy pneumatic pressure to bond metals. Shunyata Research uses both methods to secure connections that do not degrade over time.



Cryogenic Processing

Shunyata Research operates its own onsite Cryogenics International computer-controlled cryogenic plant. Liquid nitrogen is used to reduce the temperature of the contents to -320 degrees Fahrenheit. The computer monitors and lowers the temperature by a single degree at a time to prevent thermal shock.



We use this process to improve the performance of connectors and various electrical components that are used in our power products and signal cabling.

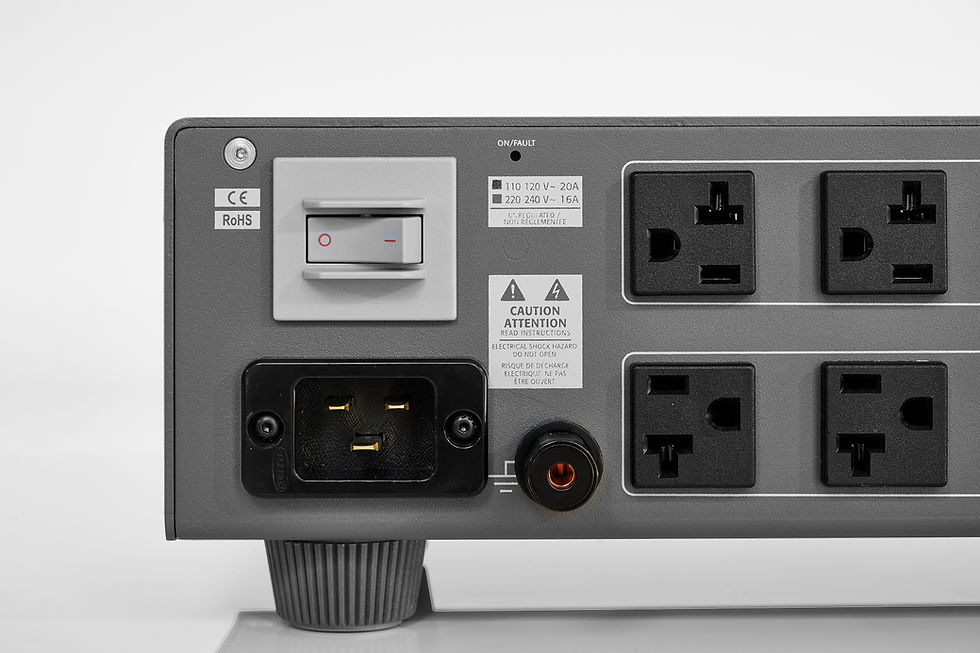

Shunyata Research Venom V16 Power Conditioner

$2,498.00Price
In-Store Only/Call to Purchase

Maximum Voltage:
90-125 VAC r.m.s. unregulated (US)
220-240 VAC r.m.s. unregulated (AS)

Input Current Ratings:
Maximum Continuous Current: 20A (US)
Maximum Continuous Current: 16A (AS)

Output Current Ratings:
Max Current/Outlet: 15A (US)
Max Current/Socket: 15A (AS)

Transient Suppression:
Maximum Transient Protection: 40,000 A @ 8/50 μs

Over-Current Protection:
Hydraulic Electromagnetic Breaker

Wiring System:
Dual 12-gauge ArNi® VTX™ Buss System
Ratings: 600 V 105° C

Noise Suppression:
Input to Output (100 kHz – 30 MHz): > 24 dB reduction
Zone to Zone (100 kHz – 30 MHz): > 26 dB reduction

Isolation Zones: 2 zones

Outlets & Connectors:
Inlet: IEC C19R

US Outlets: 16 NEMA5-20R
AS Outlets: 16 NEMA 5-20R

Vibration Control:
Vibration dampening panels (internal)
AC outlet dampening gaskets

Construction:
Aluminum and steel chassis
Anodized, aluminum faceplate

Dimensions:
Width: 17.0 inches (43.2 cm)
Depth: 9 inches (22.9 cm)
Height: 4.6 inches (11.7 cm)
Weight: 9.5 lbs (4.3 kg)
